Waterworks Window Cleaning
Support
Explore the setup. Choose a thumbnail to explore each view.
A DIFFERENT SETUP IN MIND?

Build it around your round.

Choose your water supply, capacity and reel layout with our System Builder.
Open System Builder ↗
SKU 1M5DSM

500L Delivery-only System

1 operator · Manual reel options
Carry and deliver pre-purified water with a van-mounted setup built around your working day.
Capacity500 litres
Operators1
Water setupDelivery only
Reel optionManual

MIRA tested

Crash-tested installation options for your Waterworks system. Select the installation or shipping option that suits your setup.
CONFIGURED PRICE

US$2,185.96 Ex. VAT

Updates with your selected reels, upgrades and delivery. Price per system, excluding VAT.

Configure your system

Choose your reel option, then add the finishing touches.

US$704.69 per system now. Your full configured price and remaining balance are shown in your basket.

PLAN YOUR NEXT UPGRADEFinance & vehicle options£38.88/mo

Equip your business. Spread the cost.

Explore finance for your configured system, or include a vehicle in your enquiry.
ILLUSTRATIVE MONTHLY PAYMENT

/ month

Around per week equivalent
60 monthsExcluding VAT
5-year illustrationUpdates with your choicesSystem + optional van
Add a vehicle to your package

Choose a van to include in your finance estimate. Vehicle availability and specification are confirmed with your quotation.

Finance breakdown & how it works

Your finance illustration

Configured equipment
Vehicle
Not included
Package value
60 illustrative monthly payments

Finance illustrations and finance enquiries are in GBP. All figures exclude VAT. Weekly equivalent is for comparison; payments are shown monthly. Final payments, fees and terms are confirmed by the finance provider.

From configuration to quotation

  1. 01Choose your system and optional vehicle.
  2. 02Send your configuration to the Waterworks team.
  3. 03Review the provider’s confirmed quotation and terms.

For limited companies only. Finance is arranged by Focus Finance Ltd, subject to status and credit approval. This illustration is not a finance offer. All finance quotations exclude VAT. The provider confirms availability and final terms.

YOUR WATERWORKS SETUP

Get a quotation

Your selected options and current configured price will be included.

We’ll use these details to respond to this enquiry. Privacy policy

Pay your way

Klarna
PayPal
Visa
Mastercard
American Express
Discover
Need help choosing? 01536 384434

The details behind your setup

Explore the equipment and specifications for this system. Your selected options determine the final configuration.
Specifications & equipment

Product Specifications

  • Frame and Fixings: Stainless steel frame, door, and fixings with pre-cut holes for all vehicles.
  • Manual Reel: Durable manual reel mounted at optimal height for easy operation and space-saving.
  • Charging System: Intelligent, solid-state B2B charging system, programmable for all vehicles including Euro 5 and Euro 6 alternators.
  • Tank Design: Unique 500L Waterworks tank design for unrivaled look, space-saving, and cleaning efficiency.
  • Hose: 1 x electric blue 6.3mm x 100M microbore hose, fitted and pressure tested with series 21 coupling.
  • Battery: 1 x 110ah (amp hours) Exide high-quality leisure battery with professionally installed terminals.
  • Pump: 1 x 100PSI 12v Aquatec pump manufactured in the UK for durability.
  • Pump Strainer: 1 x Pump Strainer with hand screw cap for easy cleaning.
  • Pump Controller: 1 x V16 Spring Digital Pump Controller with auto dead end and voltage indicator display.

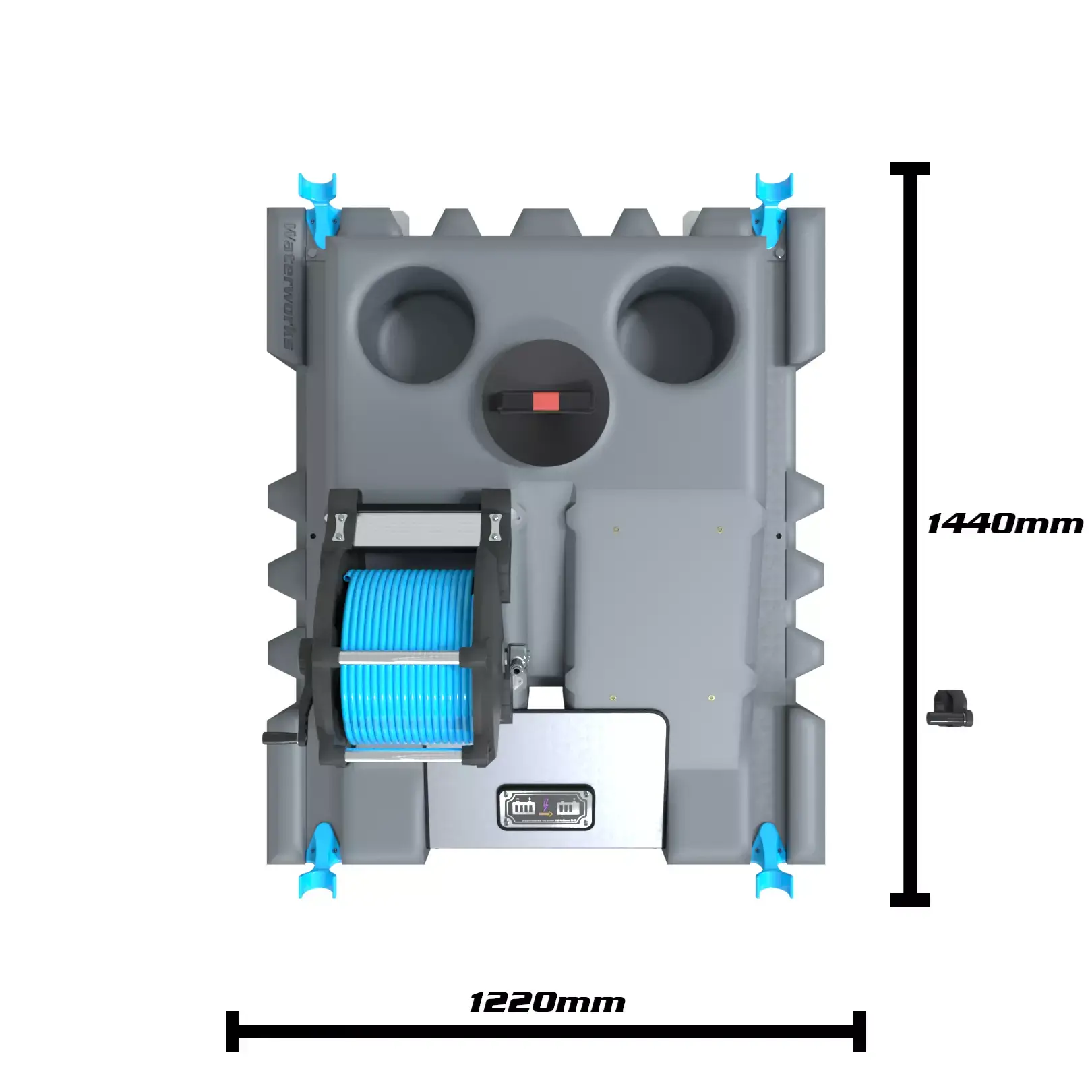

  • Dimensions: 122CM wide x 144CM long x 97CM high (including frame and reels).
  • Weight: 130kg.
Description & installation

1 Man 500L Window Cleaning System (Delivery) with Manual Reel:

  • High-Quality Components: Best quality frame, pumps, strainers, terminals, batteries, and digital controllers.
  • Space-Saving Design: Reels mounted on tank fixing points for optimal space usage.
  • User-Friendly and Efficient: Reels positioned at the perfect height to reduce operator fatigue.
  • Durable and Rust-Free: Stainless steel frame and door for long-lasting, professional window cleaning equipment.
  • Easy Maintenance: Rectus compatible brass quick-release fittings for quick problem resolution.
  • Advanced Charging System: Solid State B2B Intelligent Charging System for all modern vehicles.
  • Flexible Installation: Suitable for a wide range of vehicle sizes and types.

Upgrade your window cleaning business systems for businesses with our 1 Man 500L reach and wash system (Delivery) with Manual Reel. This comprehensive and efficient window cleaning system is designed specifically for professional window cleaners who seek reliability, high performance, and ease of use.

Our Delivery System features a strong window cleaning hose reel, perfectly integrated into the design to offer easy-to-use and space-saving benefits. The manual reel, known for its durability and straightforward operation, is mounted at an optimal height, ensuring minimal strain and maximum productivity for the operator.

The 500L Waterworks tank, a result of over 20 years of industry expertise, provides exceptional space-saving and cleaning efficiency. Made from thick, durable polyethylene, the tank includes pre-moulded fixing positions for easy upgrades. The tank-mounted reel setup maximizes space and positions the reel at a user-friendly height to minimize operator fatigue.

Our Delivery System is ideal for both residential and commercial window cleaning system projects, fitting effortlessly in smaller vans such as VW Caddy, Vauxhall Combi, Citroën Berlingo, Peugeot Partner, Ford Transit Connect, and various other vehicles. The system comes equipped with a 110ah Exide high-quality leisure battery, a 100PSI 12v Aquatec pump, and a V16 Spring Digital Pump Controller with auto dead end and voltage indicator display, ensuring smooth and efficient operation.  The makes it the all round best value, best design window cleaning system ever manufactured.

Our stainless steel mounting frame with pre-cut holes ensures a rust-free and durable installation, which you may not find in powder-coated steel alternatives. This professional-grade frame guarantees long-lasting life and a polished appearance for several years.

The Solid State B2B Intelligent Charging System ensures optimal charging efficiency for all vehicles, including those with Euro 5 and Euro 6 alternators.

Experience the convenience and efficiency of our top-of-the-line pure water window cleaning system. You will find the highest quality and reliability in every component of our delivery system, from the frame to the digital controllers.

Integrating seamlessly with gardiners pole systems, this window cleaning water fed pole domestic system ensures versatile and top-tier performance. Ideal for any professional looking to enhance their window cleaning pole system setup, this solution guarantees unmatched reliability.

Choose this superior window washing pole system featuring robust window cleaning hoses and durable water hose pipe reels, ensuring efficient and manageable hose deployment. The window cleaning systems from Window Cleaning Warehouse promise the utmost in quality and performance.

Transform your operations with the 1 Man 500L Delivery System with Manual Reel and elevate your business to a new level of efficiency, productivity, and professionalism.

Dimensions, weight & options
Weight 175 kg
Dimensions 144 × 122 × 97 cm
Hose Colour

Blue, Hi- Viz Orange, Hi- Viz Yellow, Red, Yellow
