Reel Stacker XL (Self Assembly)

The Reel Stacker XL (Self Assembly) is our heavy-duty stainless steel stacker frame designed specifically for XL reel models.

It offers the same proven design and durability as our assembled XL reel stackers, while being supplied flat-packed to reduce shipping size and costs.

This version is compatible with all four of our XL reel models and is ideal for customers running higher-capacity hose reels who require a robust stacking solution.

Assembly is simple and typically takes around 30 minutes.

ASSEMBLY & TOOLS REQUIRED

Both reel stacker frames are supplied flat-packed and require simple self-assembly.

Tools required:

• 1 × 19mm socket
• 1 × 19mm spanner
• 1 × 13mm spanner

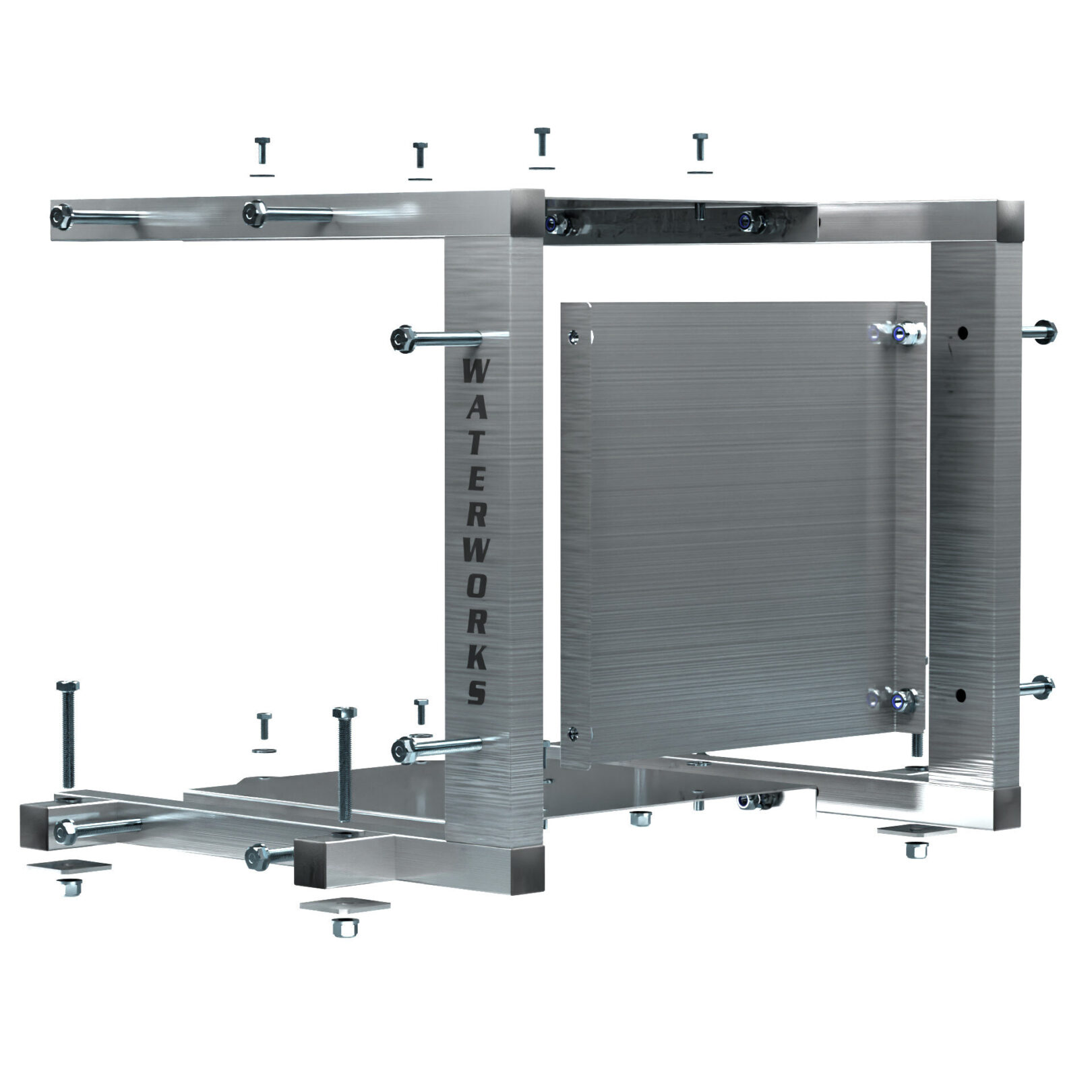

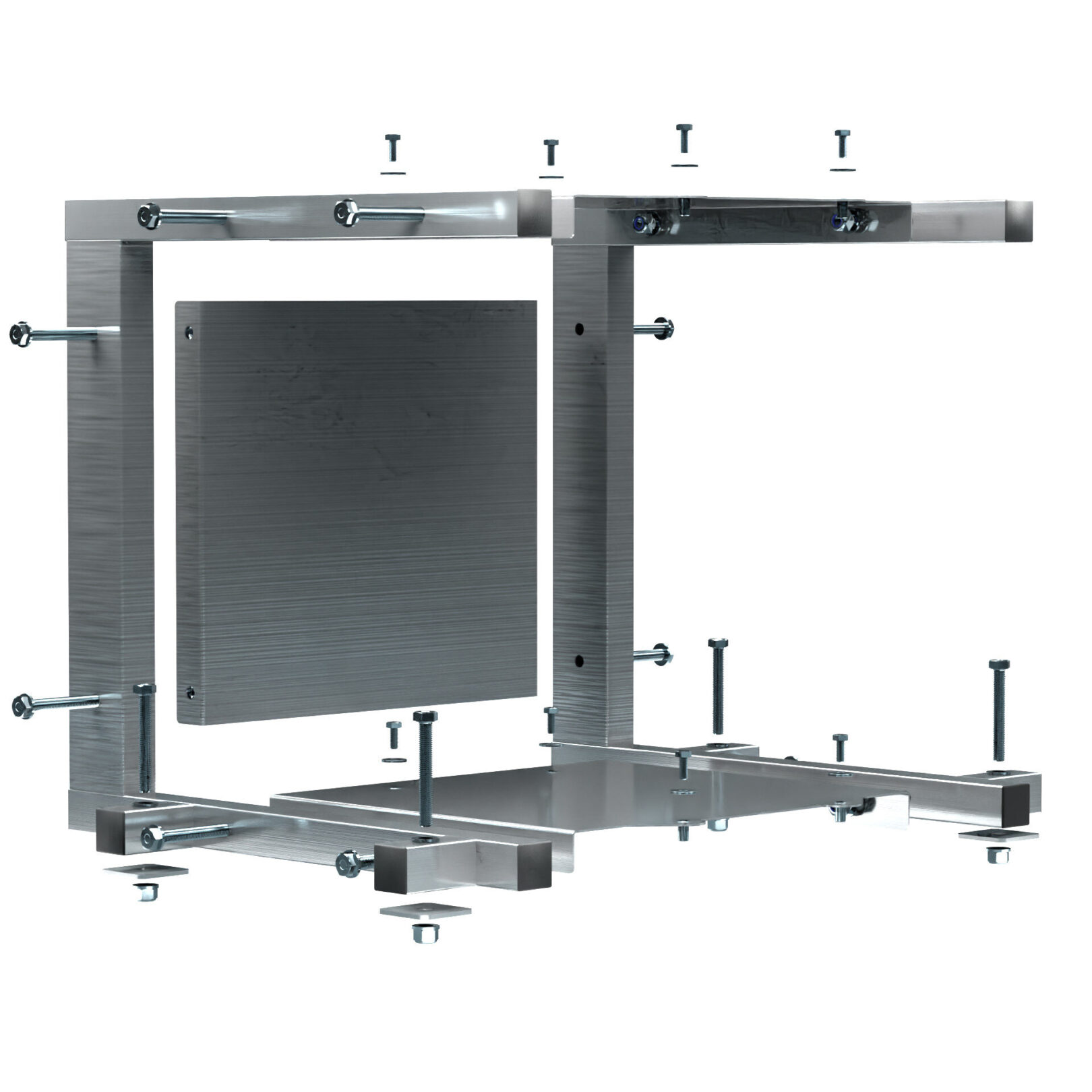

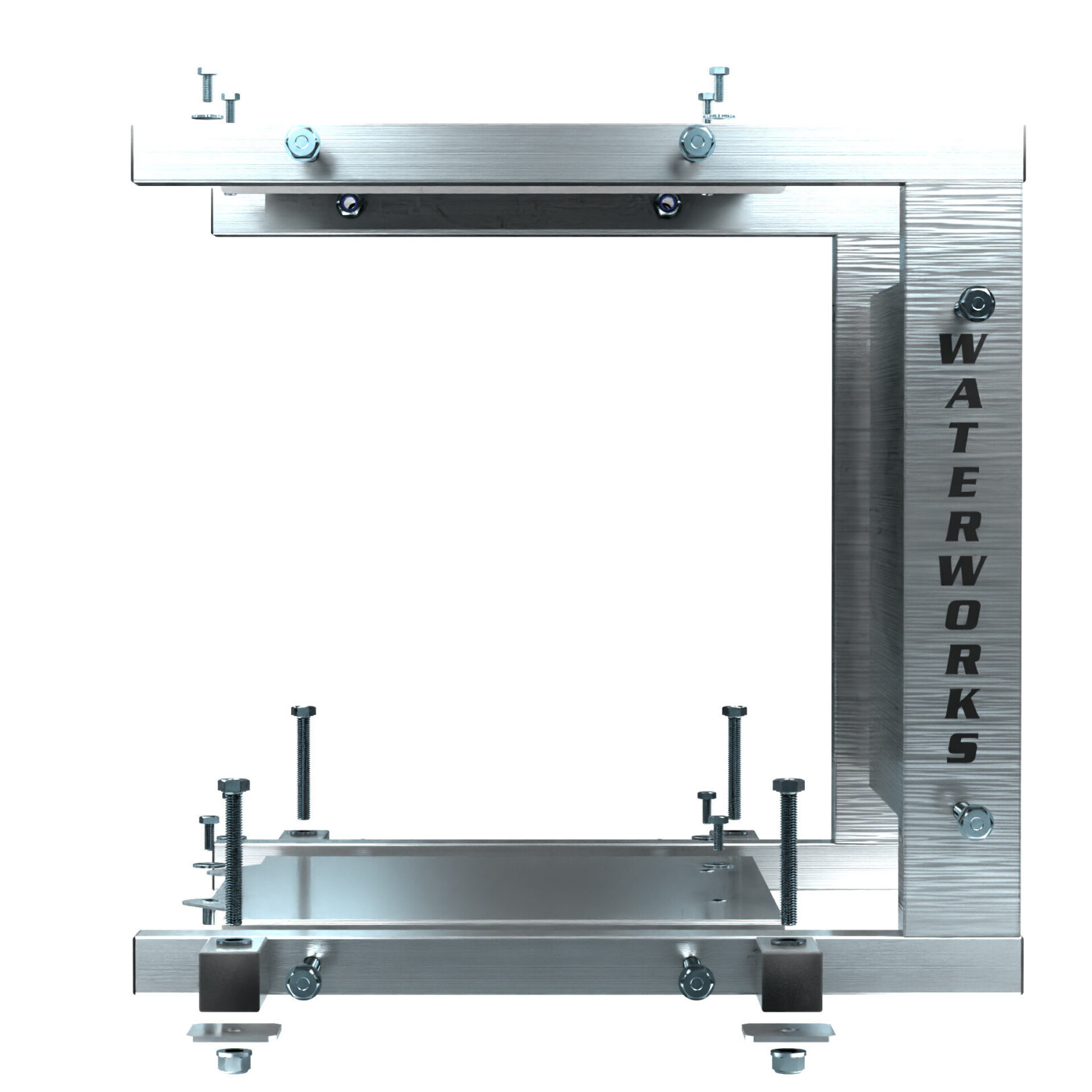

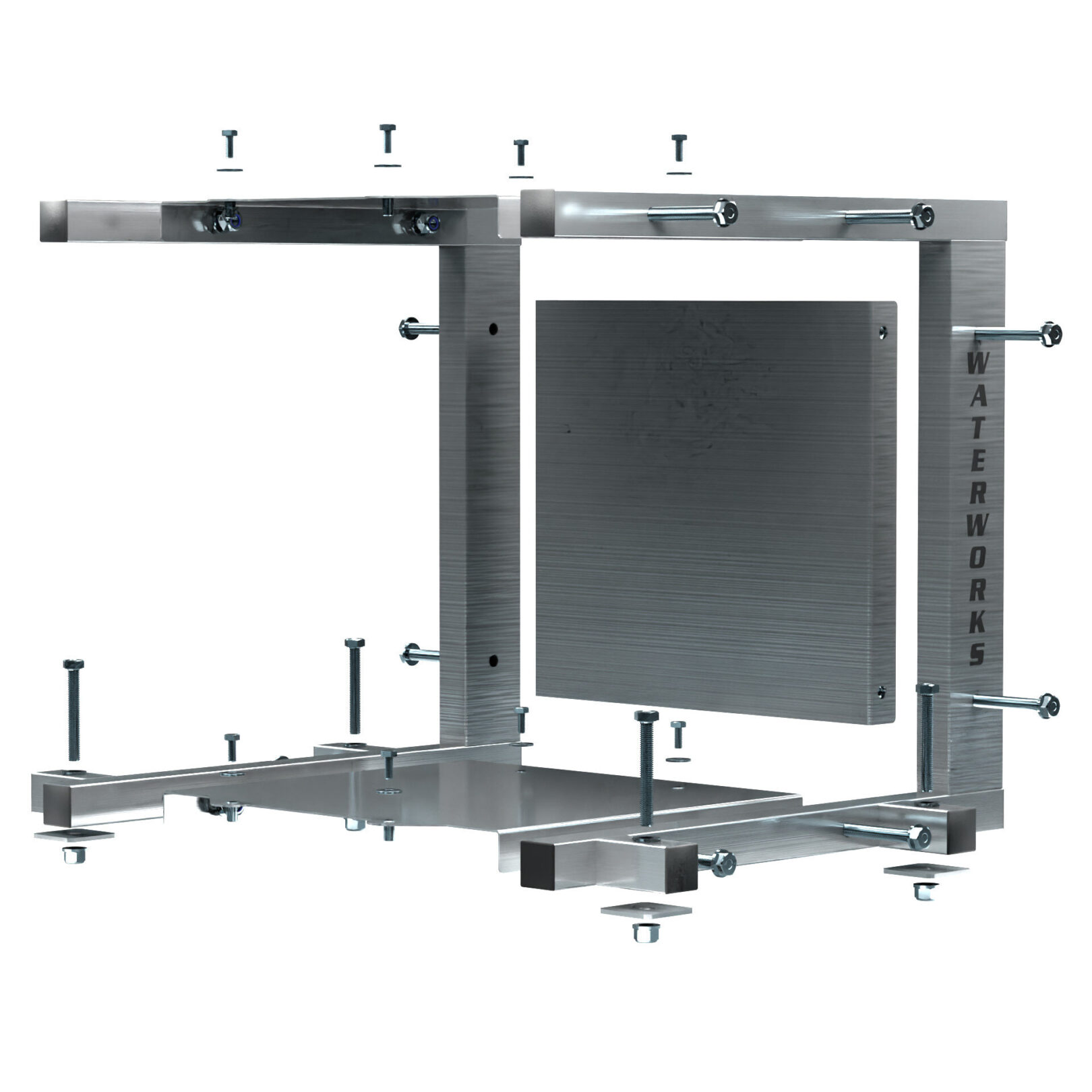

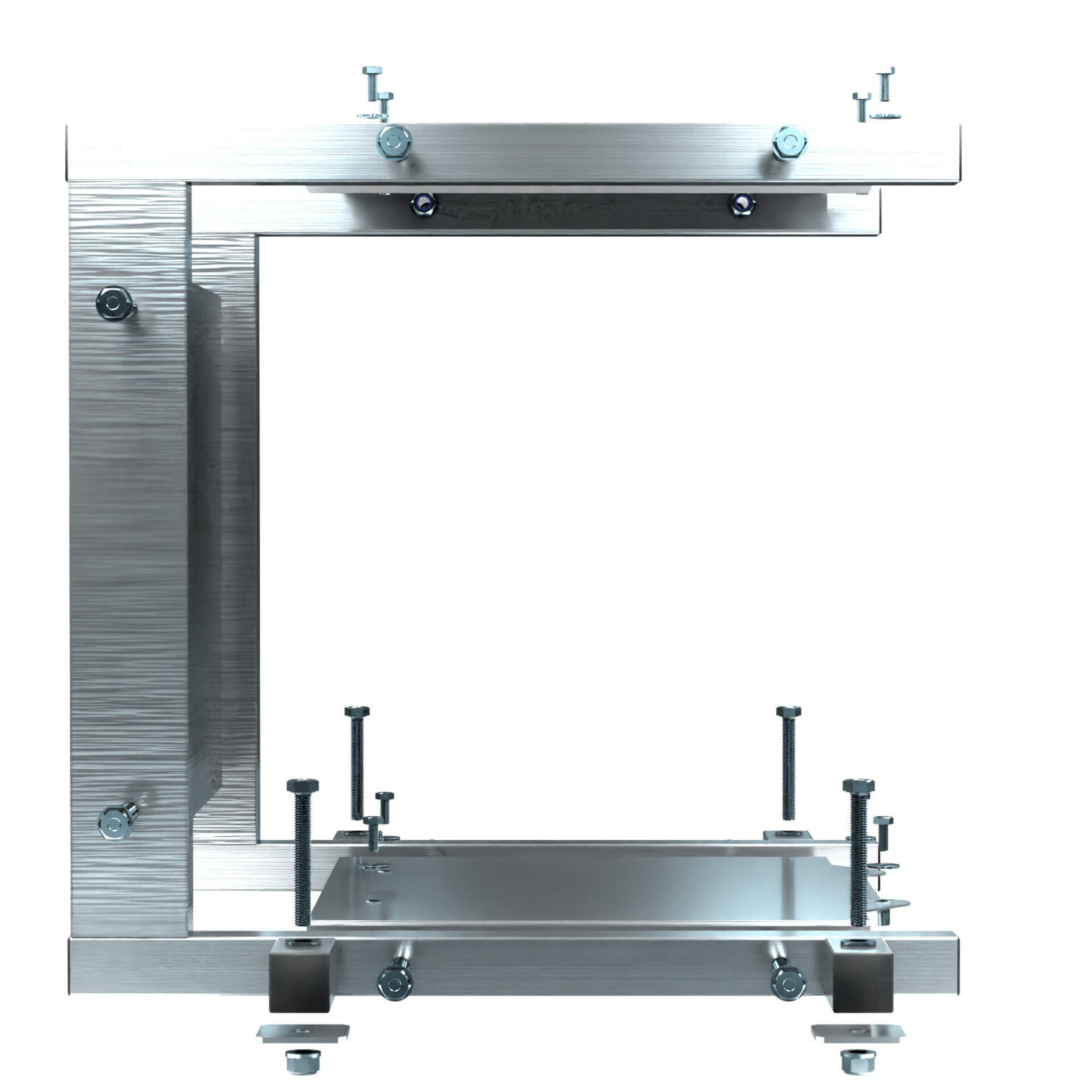

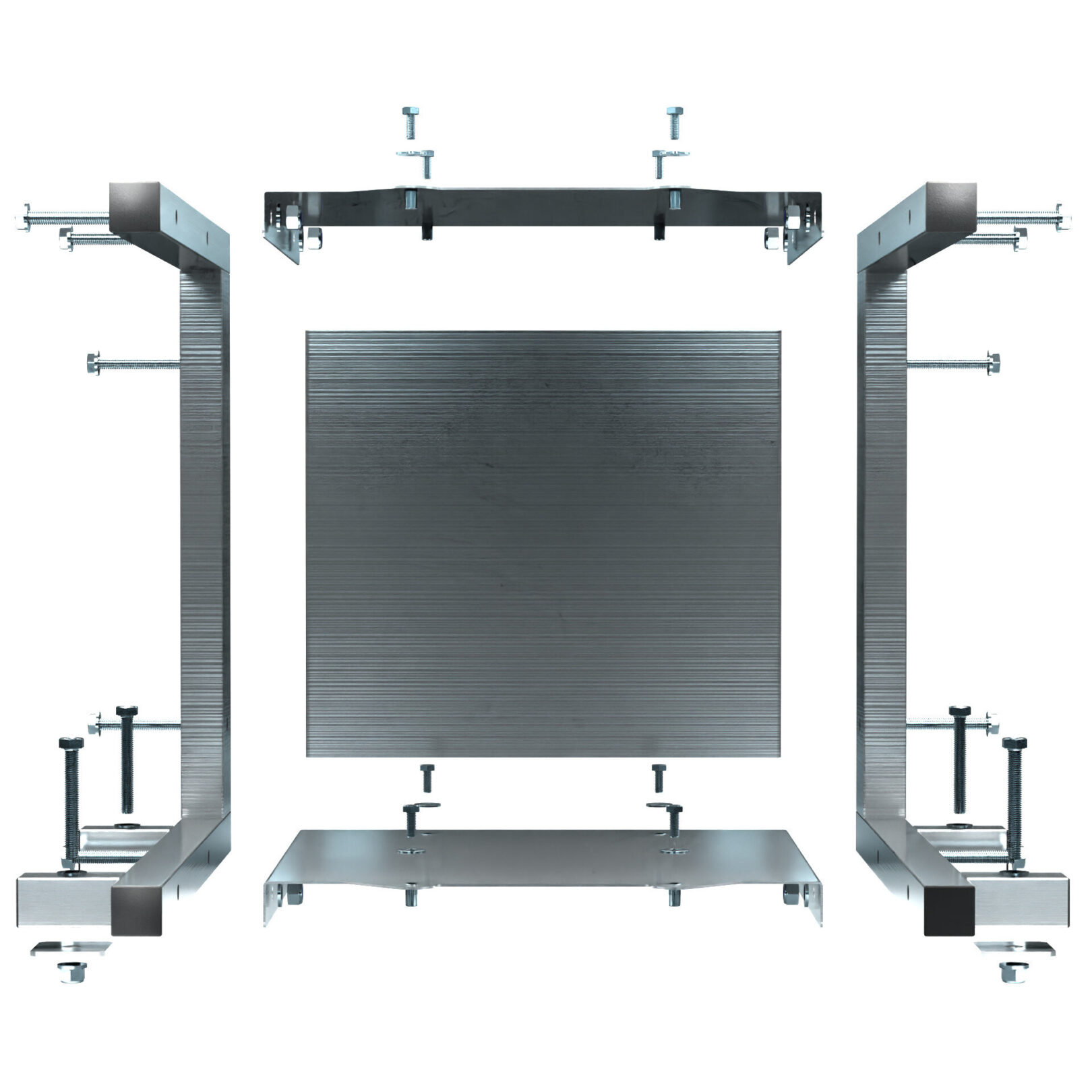

The assembly procedure is clearly visible within the product images provided on this page.

No specialist tools are required.

???? FIXINGS INCLUDED

All fixings required to assemble the frame and mount it to your existing reels are supplied.

Frame assembly fixings:

• 16 × M12 × 90mm Stainless Steel Set Screws
• 32 × M12 Stainless Steel Washers
• 16 × M12 Stainless Steel Nyloc Nuts
• 4 × Spreader Plates

Reel mounting fixings:

• 8 × M8 × 16mm Stainless Steel Reel Fixings
• 8 × M8 × 20mm Reel Fixing Washers

???? SHIPPING & SUPPLY FORMAT

• Supplied disassembled / self-assembly as standard
• Flat-pack format:
  • reduces shipping costs
  • minimises transit damage
  • improves handling and storage

⚠️ Builder exception

When purchased as part of our Reel Stacker Builder, the reel stacker is supplied fully assembled.

SPECIFICATIONS

• Material: Stainless Steel
• Compatibility: Fits all 4 XL reel models
• Supply format: Self Assembly / Flat-Pack
• Assembly time: Approx. 30 minutes
• Fixings: All included
