Waterworks Window Cleaning
Support
Explore the setup. Choose a thumbnail to explore each view.
A DIFFERENT SETUP IN MIND?

Build it around your round.

Choose your water supply, capacity and reel layout with our System Builder.
Open System Builder ↗
SKU 1M5DIM

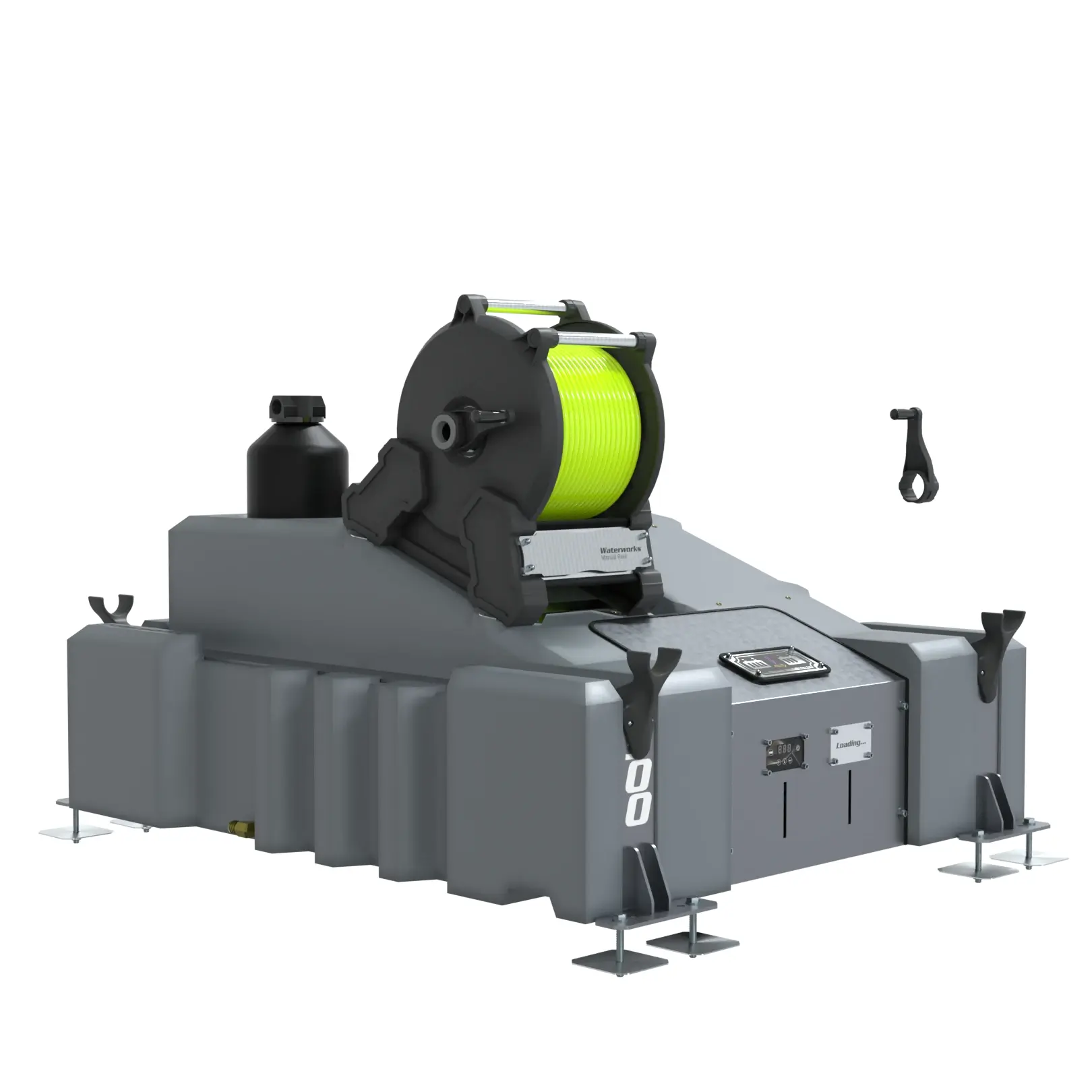

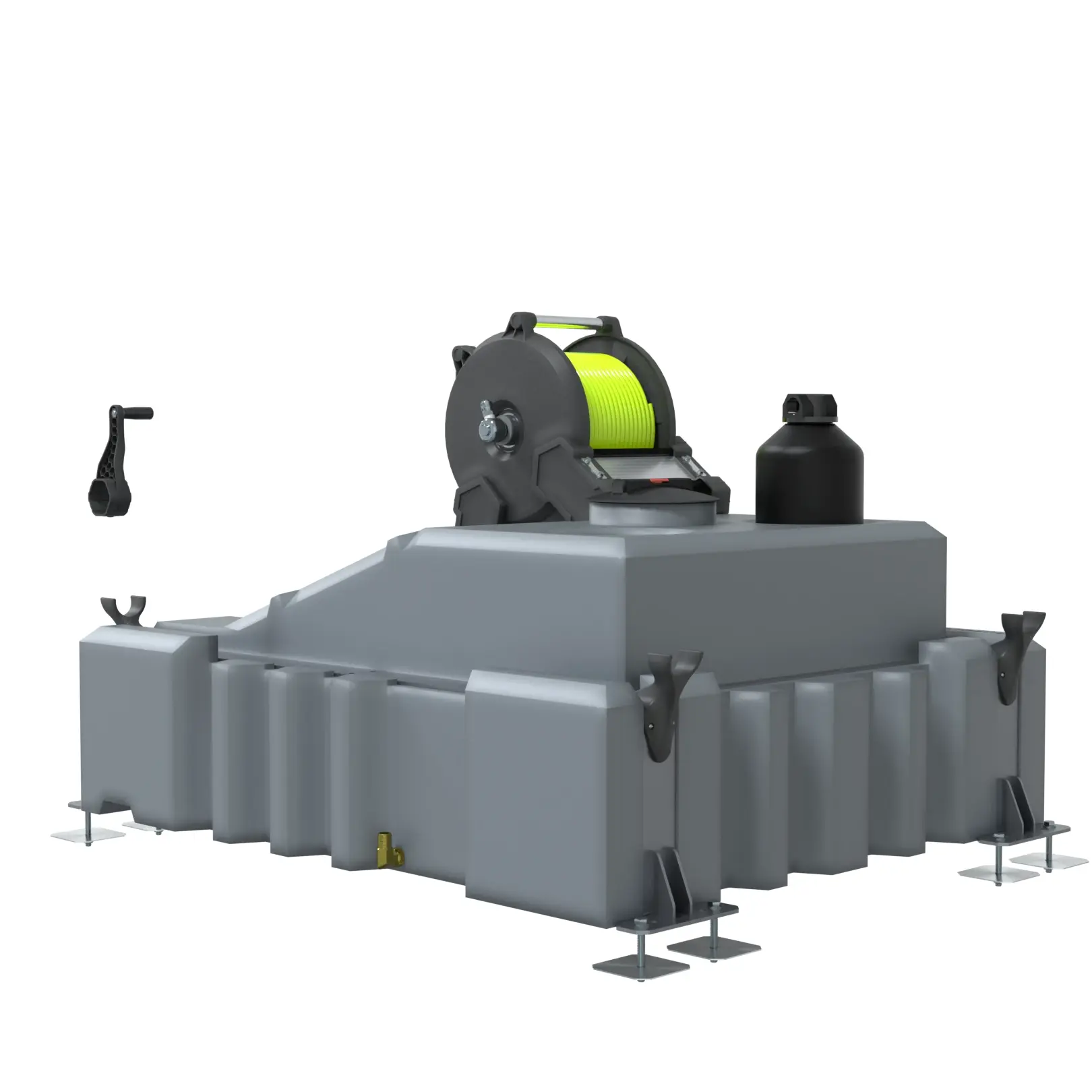

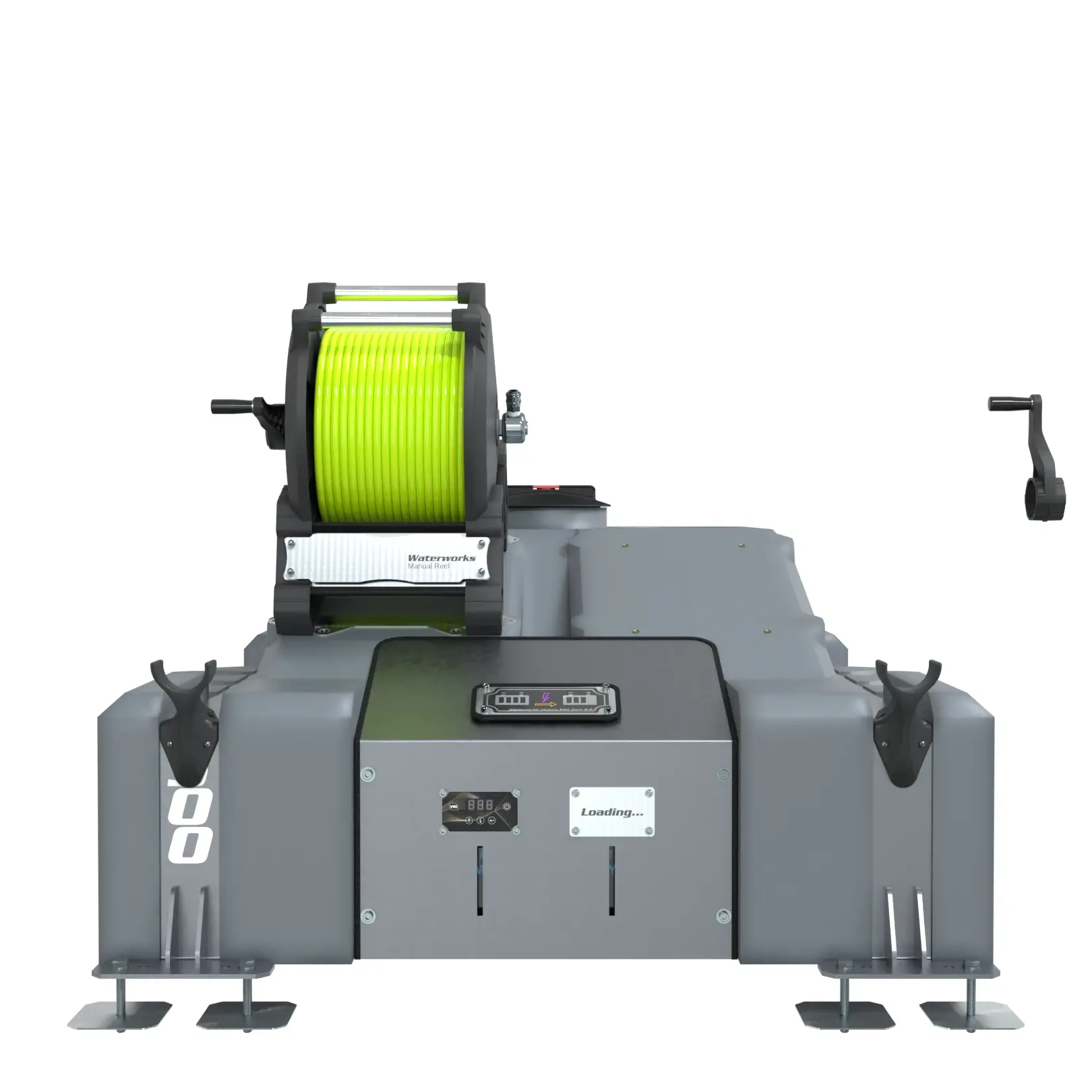

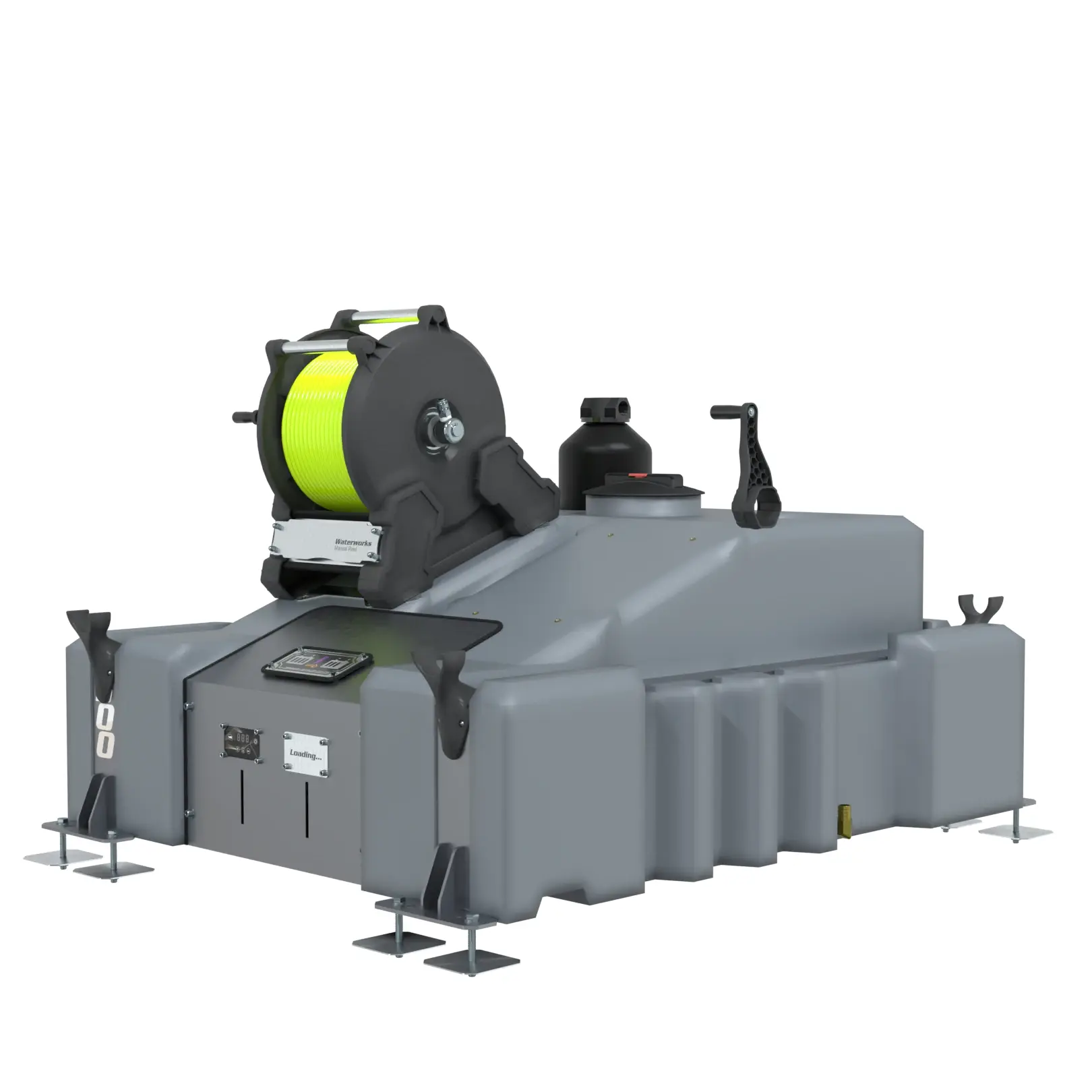

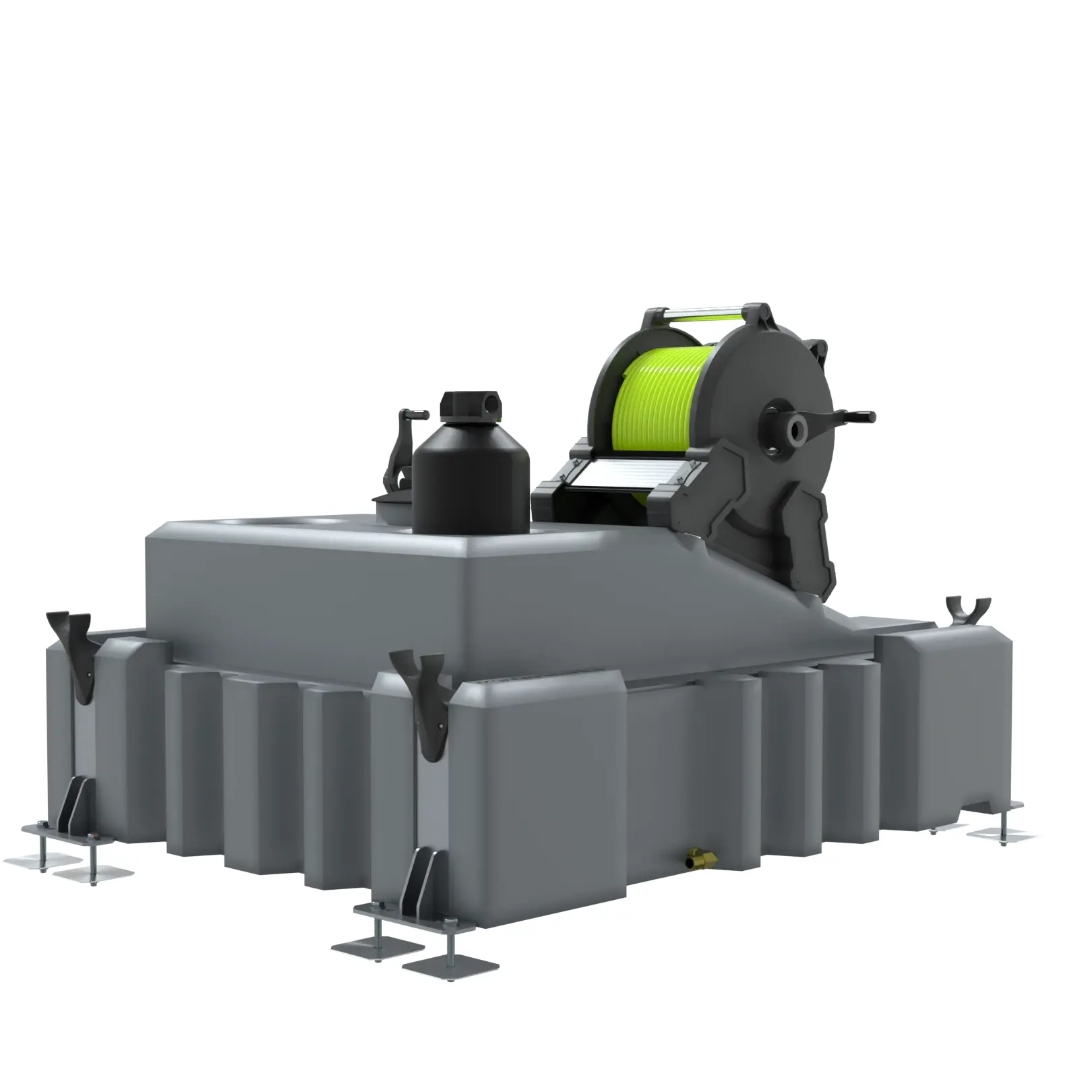

500L DI System

1 operator · Manual reel options
A van-mounted system with deionising resin filtration. Choose the reel and finishing options to suit your round.
Capacity500 litres
Operators1
Water setupDI resin
Reel optionManual

MIRA tested

Crash-tested installation options for your Waterworks system. Select the installation or shipping option that suits your setup.
CONFIGURED PRICE

US$2,481.95 Ex. VAT

Updates with your selected reels, upgrades and delivery. Price per system, excluding VAT.

Configure your system

Choose your reel option, then add the finishing touches.

US$689.05 per system now. Your full configured price and remaining balance are shown in your basket.

PLAN YOUR NEXT UPGRADEFinance & vehicle options£45.15/mo

Equip your business. Spread the cost.

Explore finance for your configured system, or include a vehicle in your enquiry.
ILLUSTRATIVE MONTHLY PAYMENT

/ month

Around per week equivalent
60 monthsExcluding VAT
5-year illustrationUpdates with your choicesSystem + optional van
Add a vehicle to your package

Choose a van to include in your finance estimate. Vehicle availability and specification are confirmed with your quotation.

Finance breakdown & how it works

Your finance illustration

Configured equipment
Vehicle
Not included
Package value
60 illustrative monthly payments

Finance illustrations and finance enquiries are in GBP. All figures exclude VAT. Weekly equivalent is for comparison; payments are shown monthly. Final payments, fees and terms are confirmed by the finance provider.

From configuration to quotation

  1. 01Choose your system and optional vehicle.
  2. 02Send your configuration to the Waterworks team.
  3. 03Review the provider’s confirmed quotation and terms.

For limited companies only. Finance is arranged by Focus Finance Ltd, subject to status and credit approval. This illustration is not a finance offer. All finance quotations exclude VAT. The provider confirms availability and final terms.

YOUR WATERWORKS SETUP

Get a quotation

Your selected options and current configured price will be included.

We’ll use these details to respond to this enquiry. Privacy policy

Pay your way

Klarna
PayPal
Visa
Mastercard
American Express
Discover
Need help choosing? 01536 384434

The details behind your setup

Explore the equipment and specifications for this system. Your selected options determine the final configuration.
Specifications & equipment

Product Specification

  • Frame and Fixings: Stainless steel frame, door, and fixings, including pre-cut holes for all vehicles.
  • Manual Reel: Durable manual reel mounted at optimal height for easy rewinding and space-saving.
  • Charging System: Intelligent, solid-state B2B charging system, programmable for all vehicles including Euro 5 and Euro 6 alternators.
  • Tank Design: Unique 500L Waterworks tank design for a professional look, space-saving, and efficient cleaning.
  • Hose: 1 x electric blue 6.3mm x 100m microbore hose, fitted and pressure tested with Series 21 coupling.
  • Battery: 1 x 110ah Exide high-quality leisure battery with professionally installed terminals.
  • Pump: 1 x 100PSI 12v Aquatec pump for durability.
  • Pump Strainer: 1 x Pump Strainer with hand screw cap for easy cleaning.
  • Pump Controller: 1 x V16 Spring Digital Pump Controller with auto dead end and voltage indicator display.

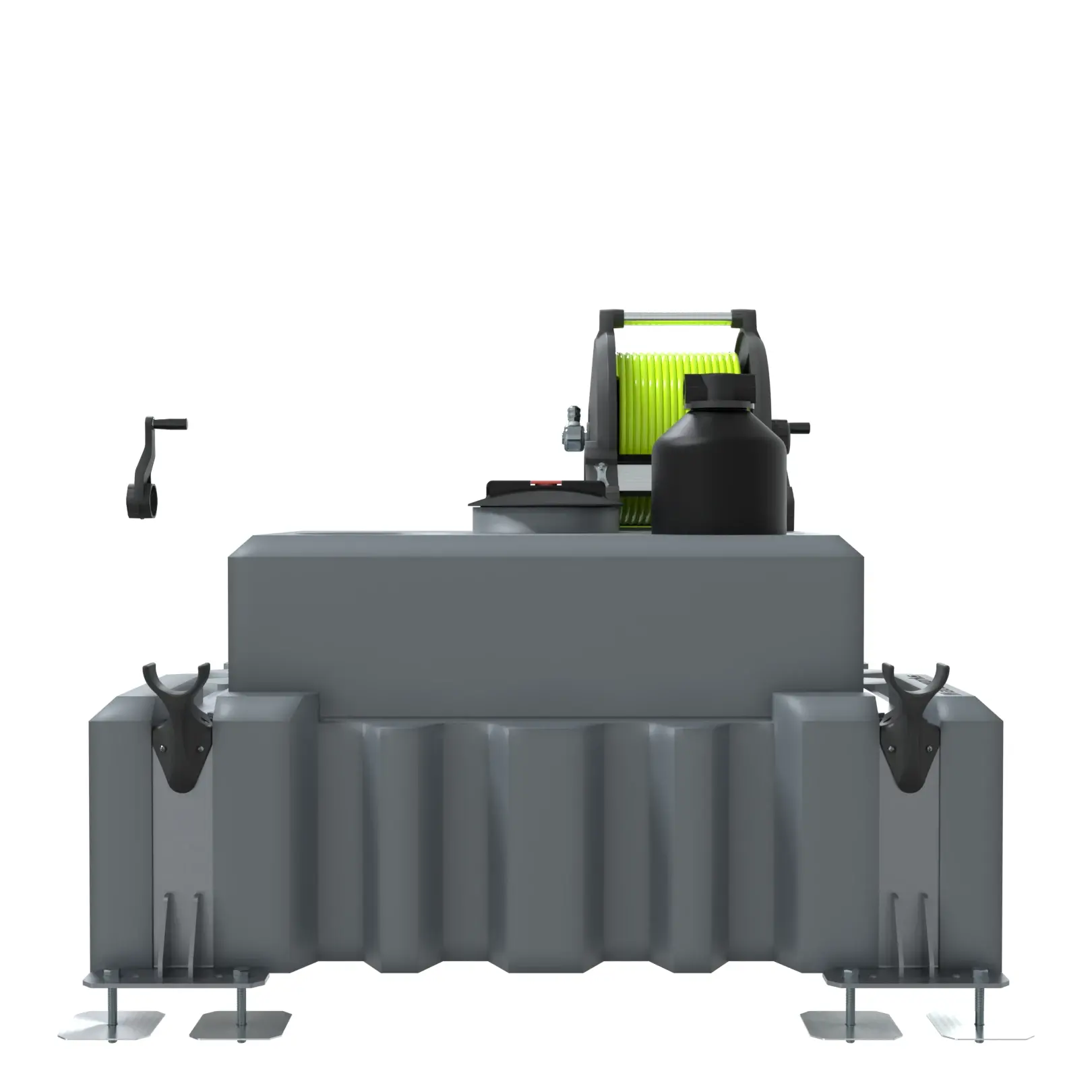

  • DI Resin Bottle: 1 x 11L DI resin bottle recessed into the tank for quick release without tools.

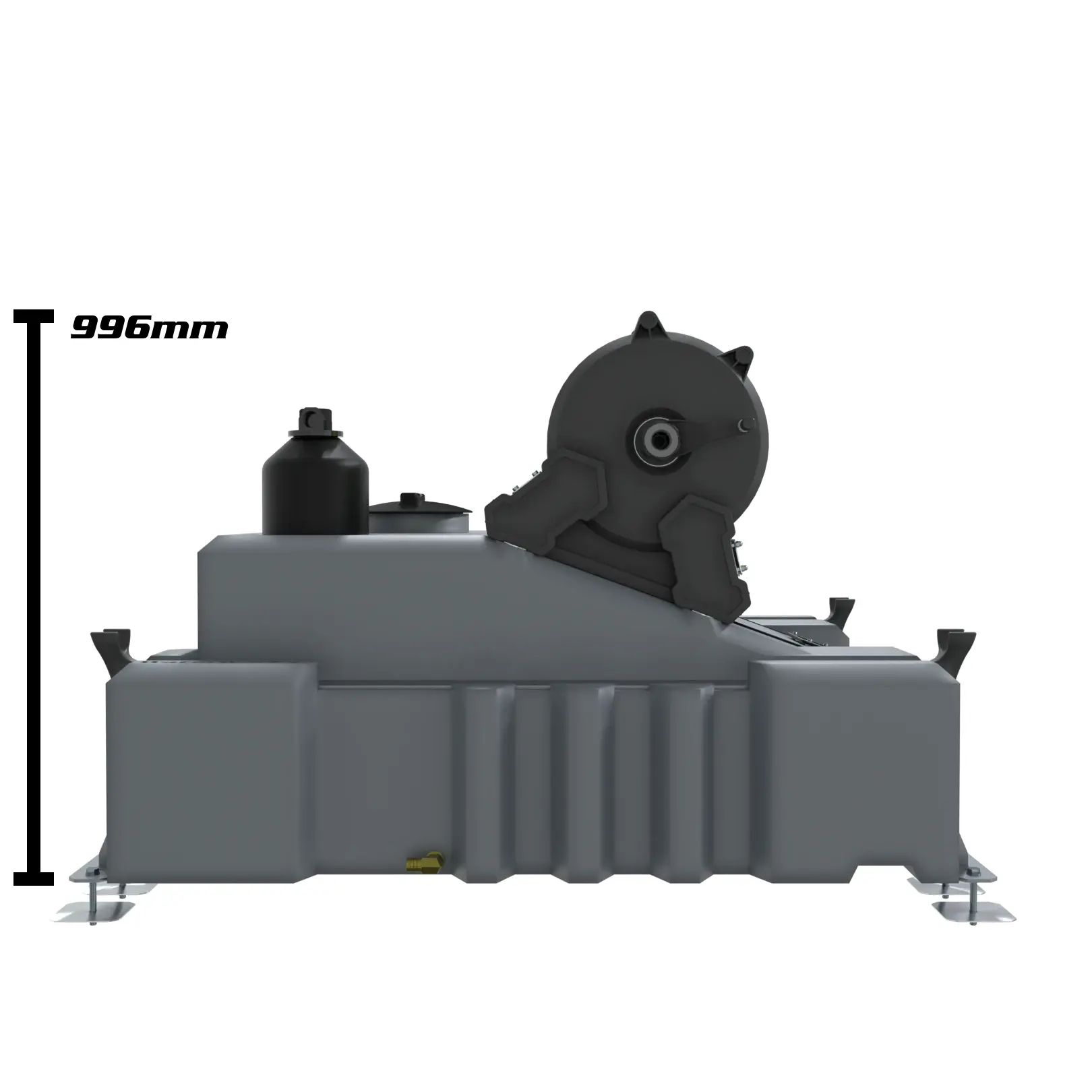

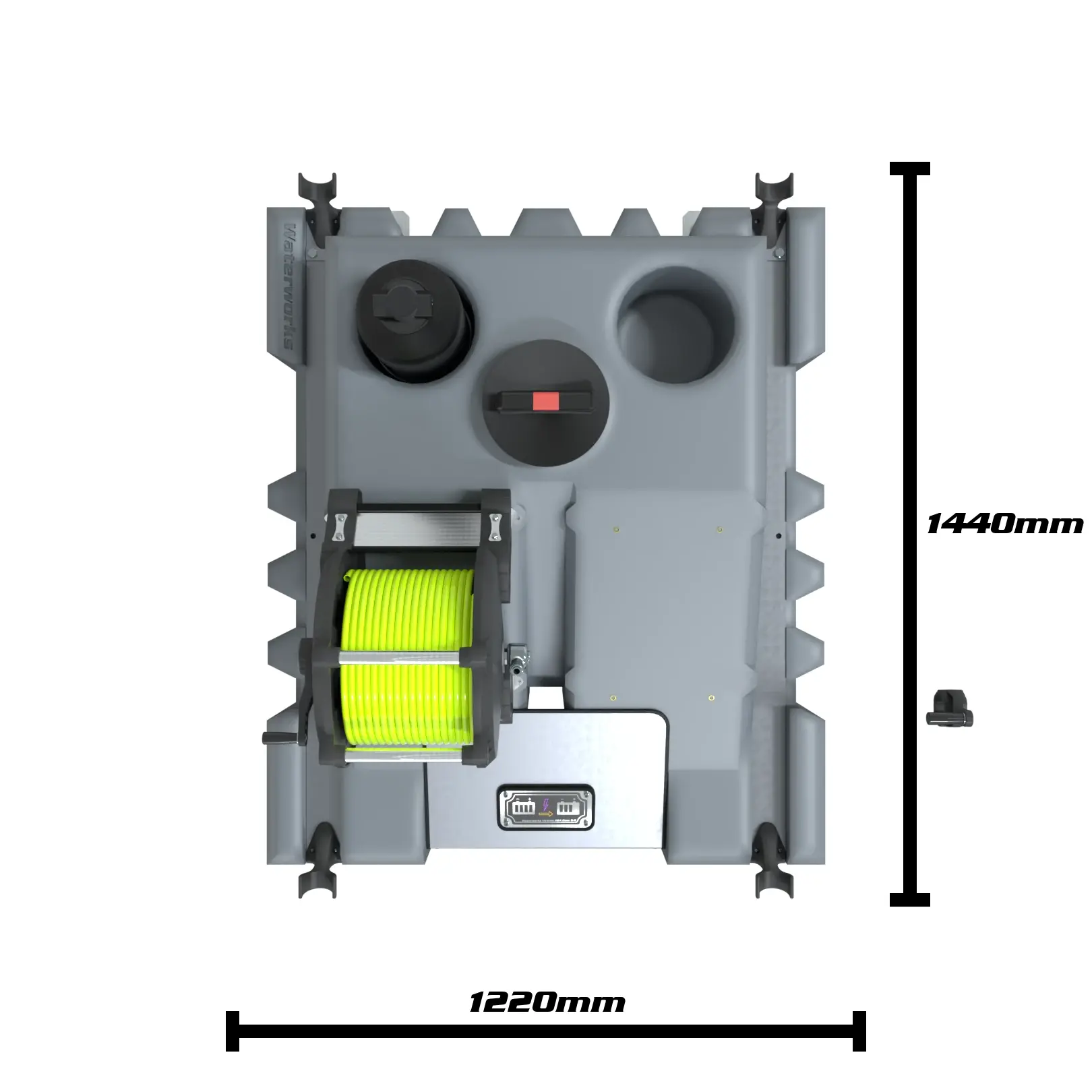

  • Dimensions (including frame and reels): 122cm width x 144cm length x 97cm height.
  • Weight: 140kg.
Description & installation

1 Man 500L Pure Water Window Cleaning System (DI) with Manual Reel:

Key Features

  • High-Efficiency Design: Unique 500L Waterworks tank maximizes cleaning efficiency and space-saving.
  • User-Friendly Manual Reel: Durable manual reel for easy hose rewinding, reducing operator fatigue.
  • Premium Components: Best quality pure water window cleaning system frame, pumps, strainers, terminals, batteries, and digital controllers.
  • Intelligent Charging System: Solid State B2B Intelligent Charging System guarantees optimal charging for all vehicles.
  • Easy Maintenance: Rectus compatible brass quick-release fittings for quick maintenance.
  • Durable Construction: Heavy-duty stainless steel frame and door for rust-free, long-lasting use.
  • Quick DI Resin Replacement: 11L DI resin bottle with quick-release mechanism for tool-free changes.
  • Versatile Installation: Suitable for small vans like Ford Transit Connect, Citroen Berlingo, Peugeot Partner, Vauxhall Combi, VW Caddy, and others.

Product Description

1 Man 500L DI System with Manual Reel

Elevate your window cleaning business with the 1 Man 500L DI Pure Water Window Cleaning System with Manual Reel. Engineered for professional window cleaners who value efficiency, reliability, and ease of use, this window cleaning pole system is ideal for both residential and commercial projects. It boasts a high-capacity 500L tank, top-tier components, and user-friendly features to enhance your operations.

At the core of this window washing pole system is the innovative 500L Waterworks tank, designed from over 20 years of industry expertise to deliver exceptional cleaning efficiency and space-saving. Constructed from robust, durable polyethylene, the tank includes pre-moulded fixing positions, ensuring easy upgrades and secure mounting. The durable manual reel, positioned at an optimal height, facilitates easy hose rewinding, reducing operator fatigue and boosting productivity.

The system is powered by a reliable 100PSI 12v Aquatec pump and controlled by a V16 Spring Digital Pump Controller with auto dead end and voltage indicator display, ensuring consistent and smooth operation. The high-quality 110ah Exide leisure battery and Solid State B2B Intelligent Charging System ensure peak performance for all vehicles, including those with Euro 5 and Euro 6 alternators.

Designed for user convenience, the 1 Man 500L DI Pure Water Window Cleaning System includes Rectus compatible brass quick-release fittings for effortless maintenance and a pump strainer with a hand screw cap for quick cleaning. The 11L DI resin bottle is recessed into the tank, featuring a quick-release mechanism that allows for tool-free resin changes, making maintenance fast and hassle-free.

This water fed pole system is perfectly suited for smaller vans such as the Ford Transit Connect, Citroen Berlingo, Peugeot Partner, and VW Caddy, but it can also be used in larger vehicles. The heavy-duty stainless steel mounting frame, complete with pre-cut holes, guarantees a rust-free, professional appearance that will stand the test of time.

Discover the pinnacle of pure water window cleaning technology with the 1 Man 500L DI System with Manual Reel. Each component is meticulously selected for its quality and reliability, ensuring your business runs smoothly and efficiently. Whether you’re using Gardiners Pole Systems or other window cleaning systems, this setup integrates seamlessly.

Upgrade your pure water window cleaning system today and experience unmatched convenience and performance. The system also includes a window cleaning warehouse approved window cleaning hose reel and window cleaning hose, making it a complete solution for your water hose pipe reel needs.

Experience the best in window cleaning systems with the 1 Man 500L DI System with Manual Reel, designed to enhance productivity and deliver spotless results every time.

Dimensions, weight & options
Weight 175 kg
Dimensions 144 × 122 × 97 cm
Hose Colour

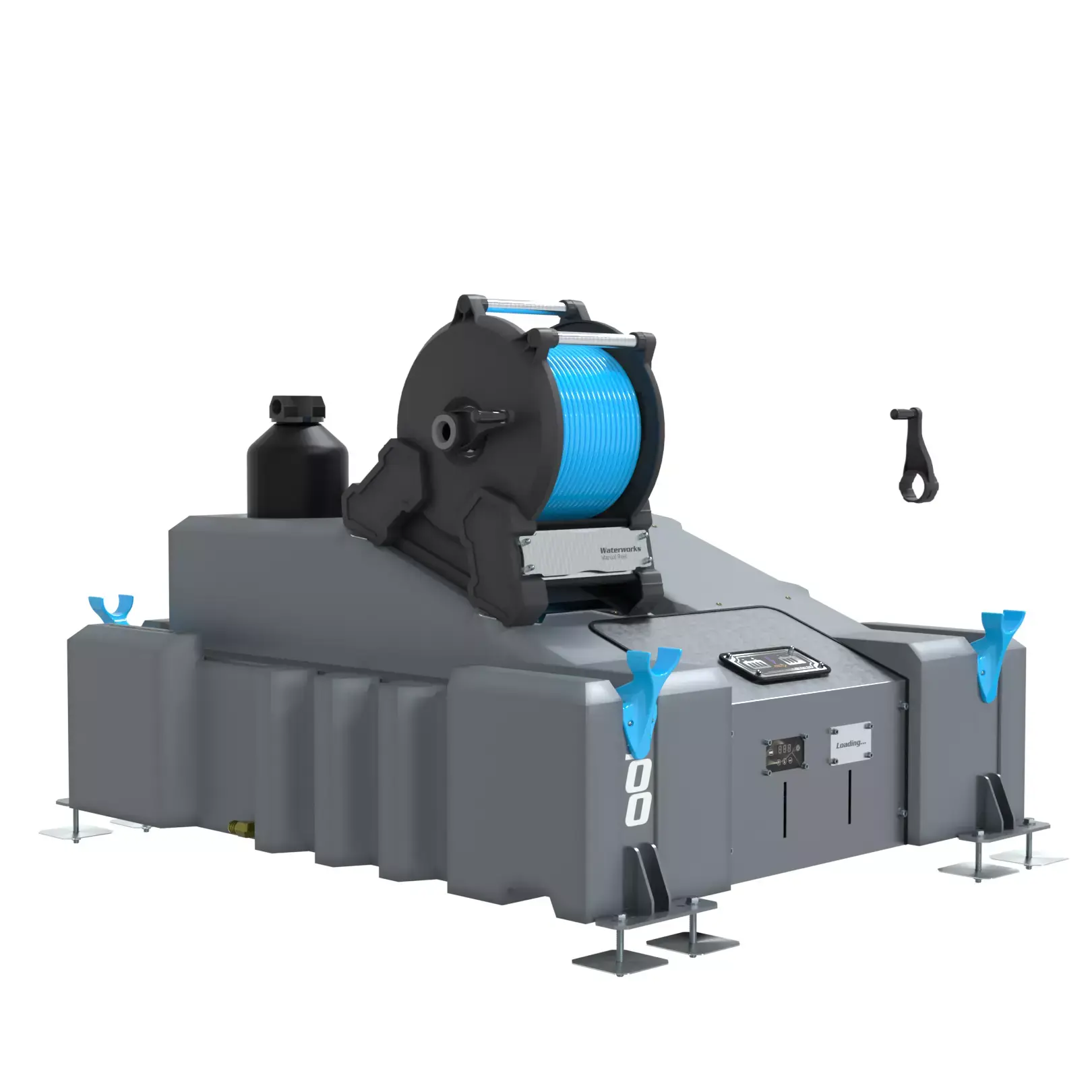

Blue, Hi- Viz Orange, Hi- Viz Yellow, Red, Yellow
