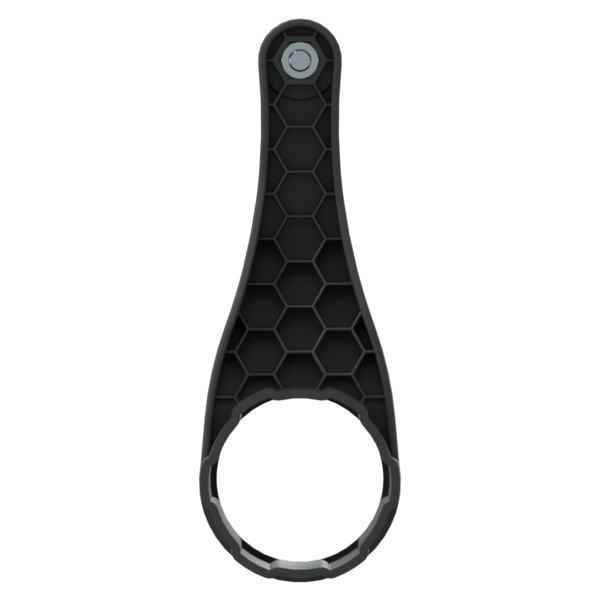

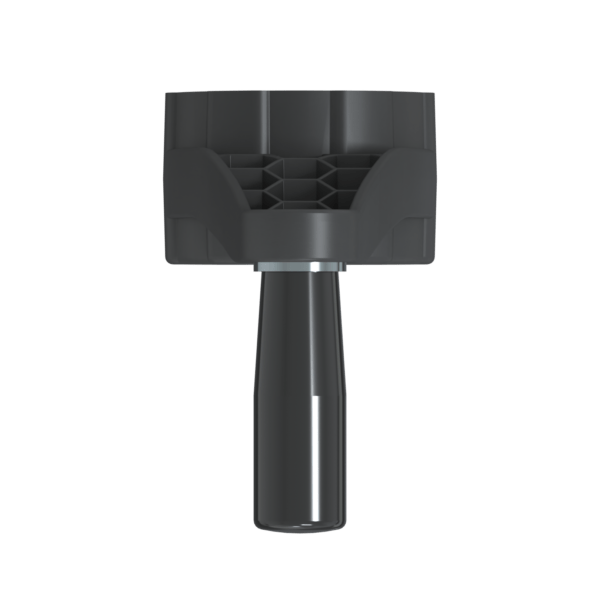

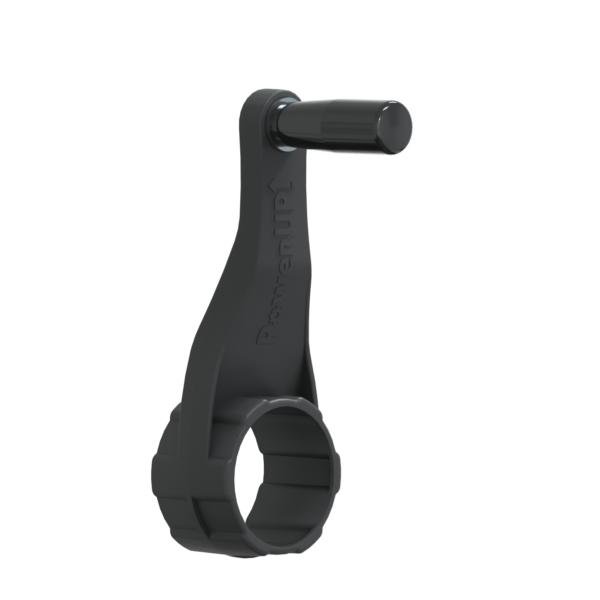

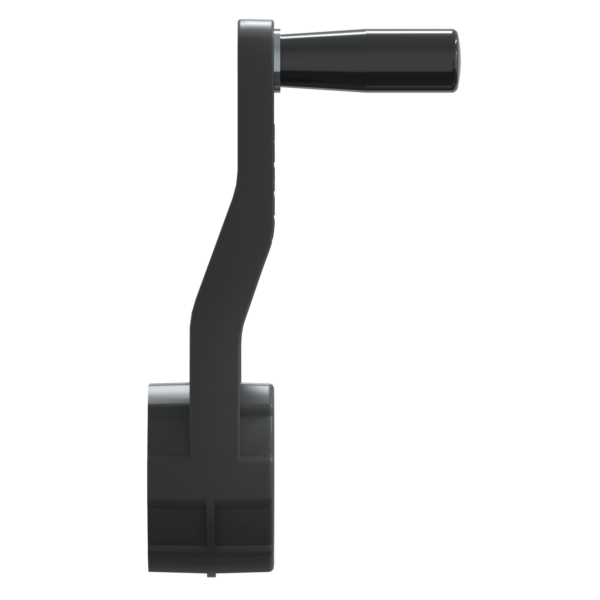

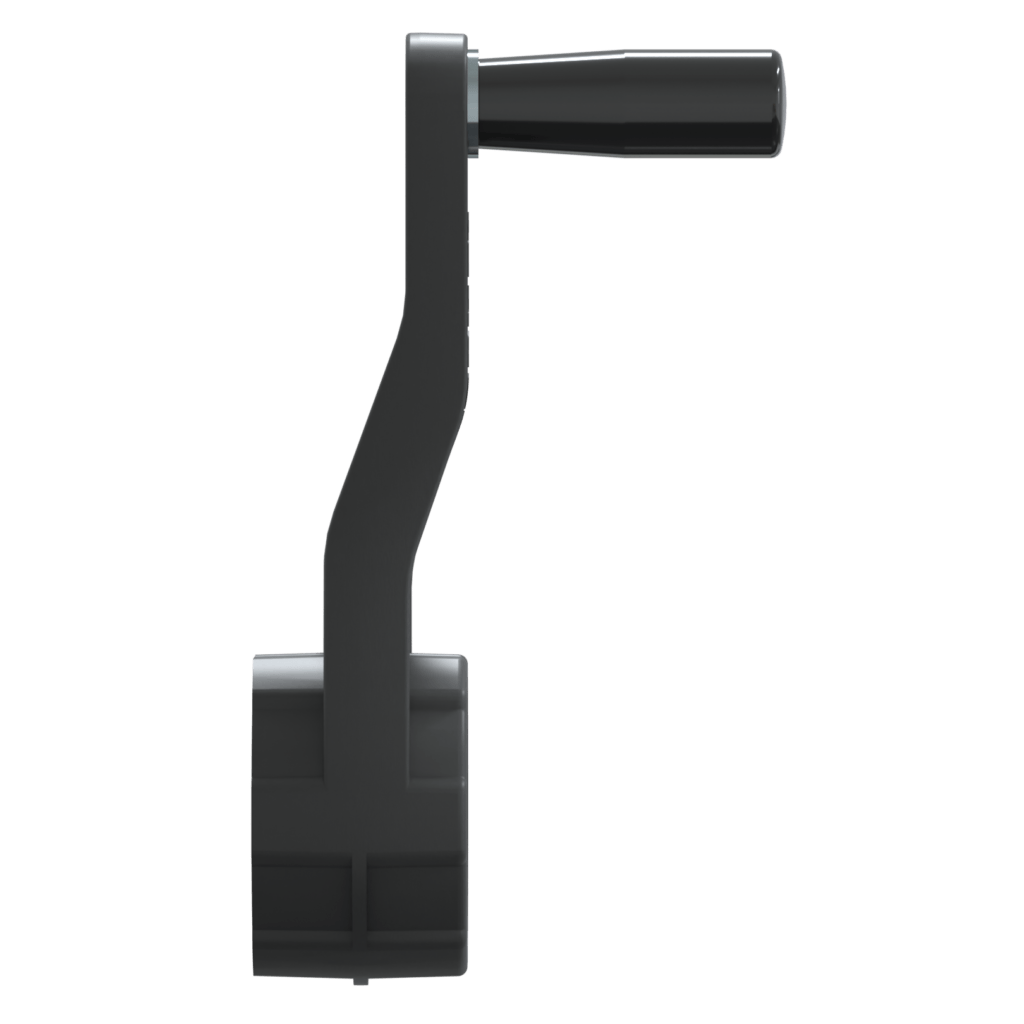

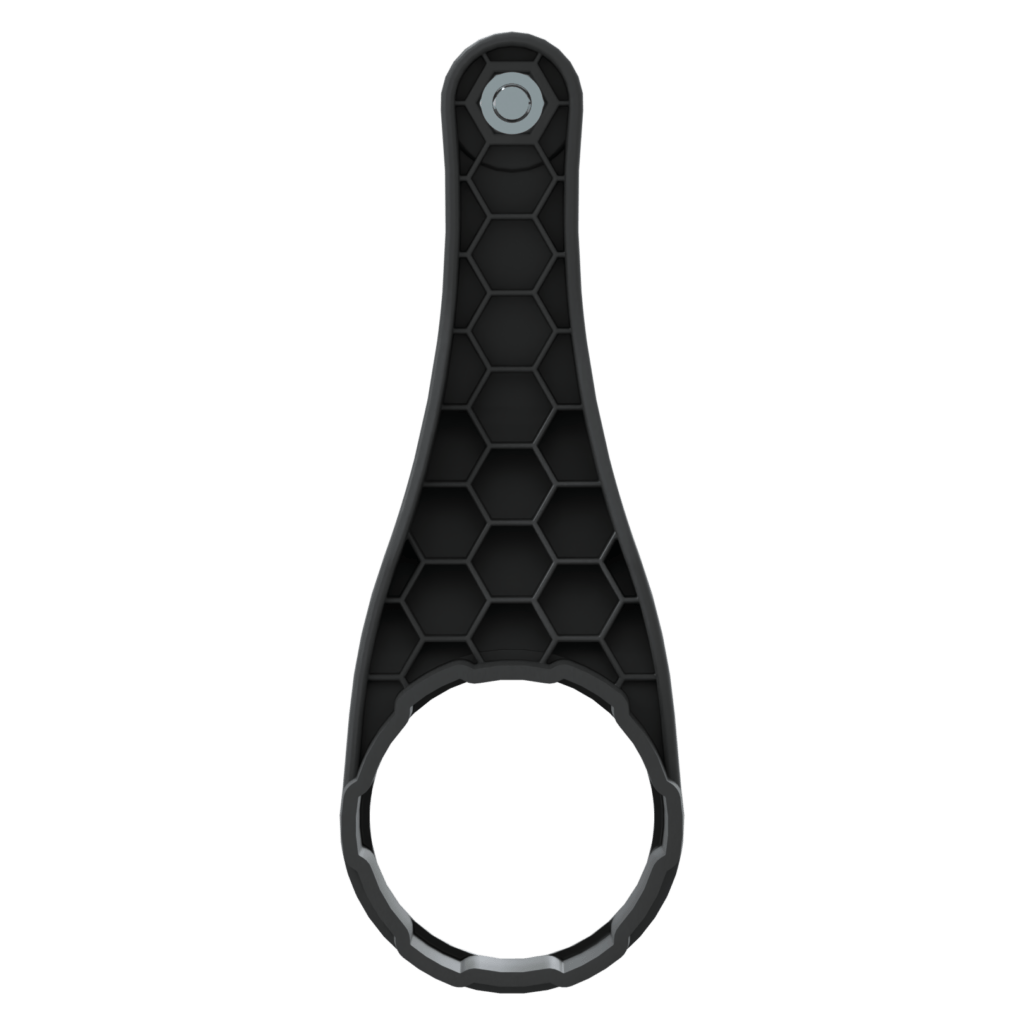

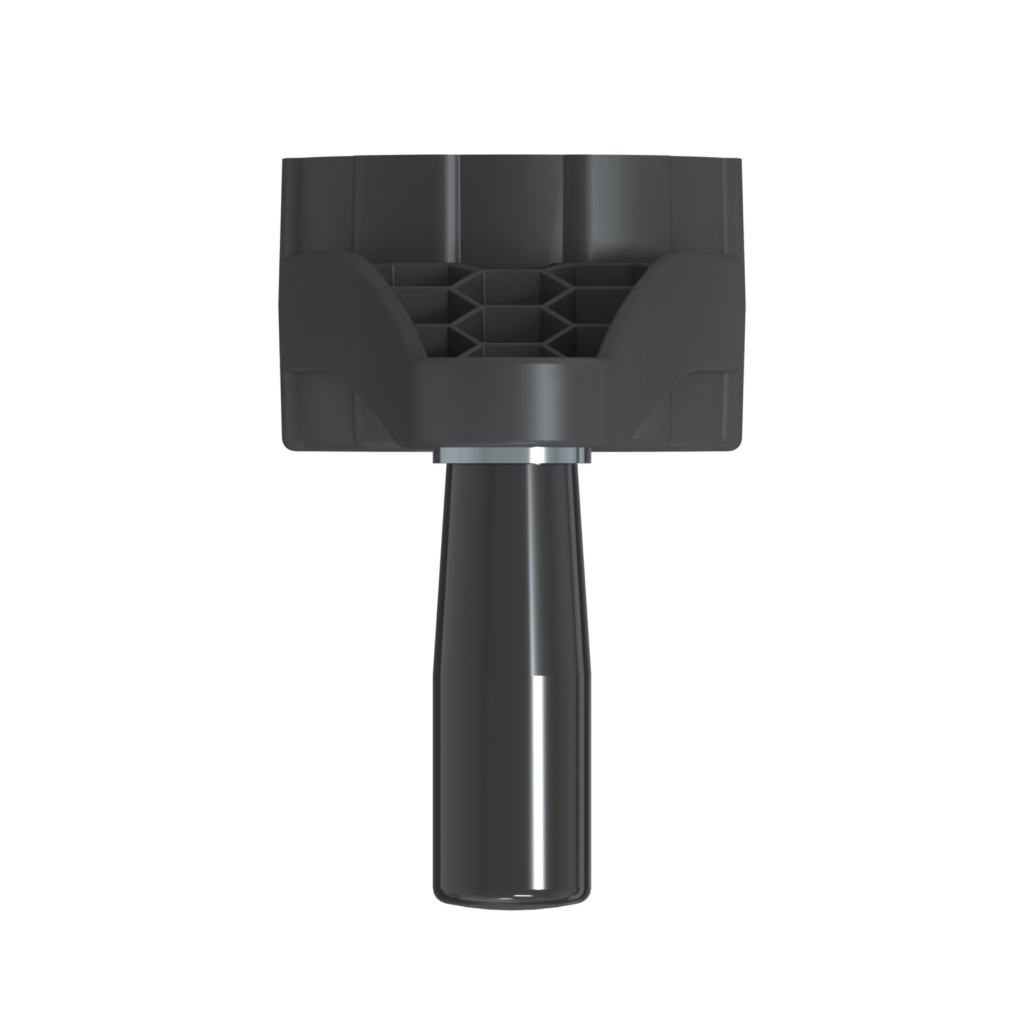

Retro-fit Winding Handle
Retro-fit the newer winding handle to an existing reel shaft using the supplied fixings. On electric reels, fit only while resolving a fault and remove the handle once normal operation is restored.
Check your model, dimensions and existing part specification before ordering.
PRICE
US$25.00 Ex. VAT
Pay your way
Compatibility & fitting details
Product information, specifications and guidance for this item.
Key features & specifications
This product listing is for our existing valued customers who wish to upgrade to the new handle by retro-fitting it to the shaft. In order to make the installation as quick as possible, we have included self tapping screws which will simultaneously drill and tap the hole for you provided you have an 8mm socket and extension. Alternatively drill through where shown with a 5mm drill bit the tighten the fixings with an 8mm spanner, 1 at a time.
Our new handle is now standard on all new manual and electric reels. When buying a new manual reel, we have already permanently fixed the handle to the shaft for you. On a new electric reel, we have drilled and tapped the holes ready to accept the handle quickly should you ever lose power.
Retro-fitting sequence:
- Place the handle onto the shaft until it is flush with the shaft end cap (Pic 2)
- Fix the first self tapping screw as shown (Pic 3)
- Fix the remaining 2 screws at an equal distance and within the recesses (Pic 4)
Its recommended that winding handles should only be fixed onto electric reels if the reel has a fault and must be removed once the problem is resolved
Description & fitting information
This product listing is for our existing valued customers who wish to upgrade to the new handle by retro-fitting it to the shaft. In order to make the installation as quick as possible, we have included self-tapping screws which will simultaneously drill and tap the hole for you provided you have an 8mm socket and extension. Alternatively drill through where shown with a 5mm drill bit the tighten the fixings with an 8mm spanner, 1 at a time.
Our new handle is now standard on all new manual and electric reels. When buying a new manual reel, we have already permanently fixed the handle to the shaft for you. On a new electric reel, we have drilled and tapped the holes ready to accept the handle quickly should you ever lose power.
Retro-fitting sequence:
- Place the handle onto the shaft until it is flush with the shaft end cap (Pic 2)
- Fix the first self tapping screw as shown (Pic 3)
- Fix the remaining 2 screws at an equal distance and within the recesses (Pic 4)
Its recommended that winding handles should only be fixed onto electric reels if the reel has a fault and must be removed once the problem is resolved
Dimensions, weight & additional information
| Weight | 0.200 kg |
|---|---|
| Dimensions | 40 × 3 × 3 cm |
